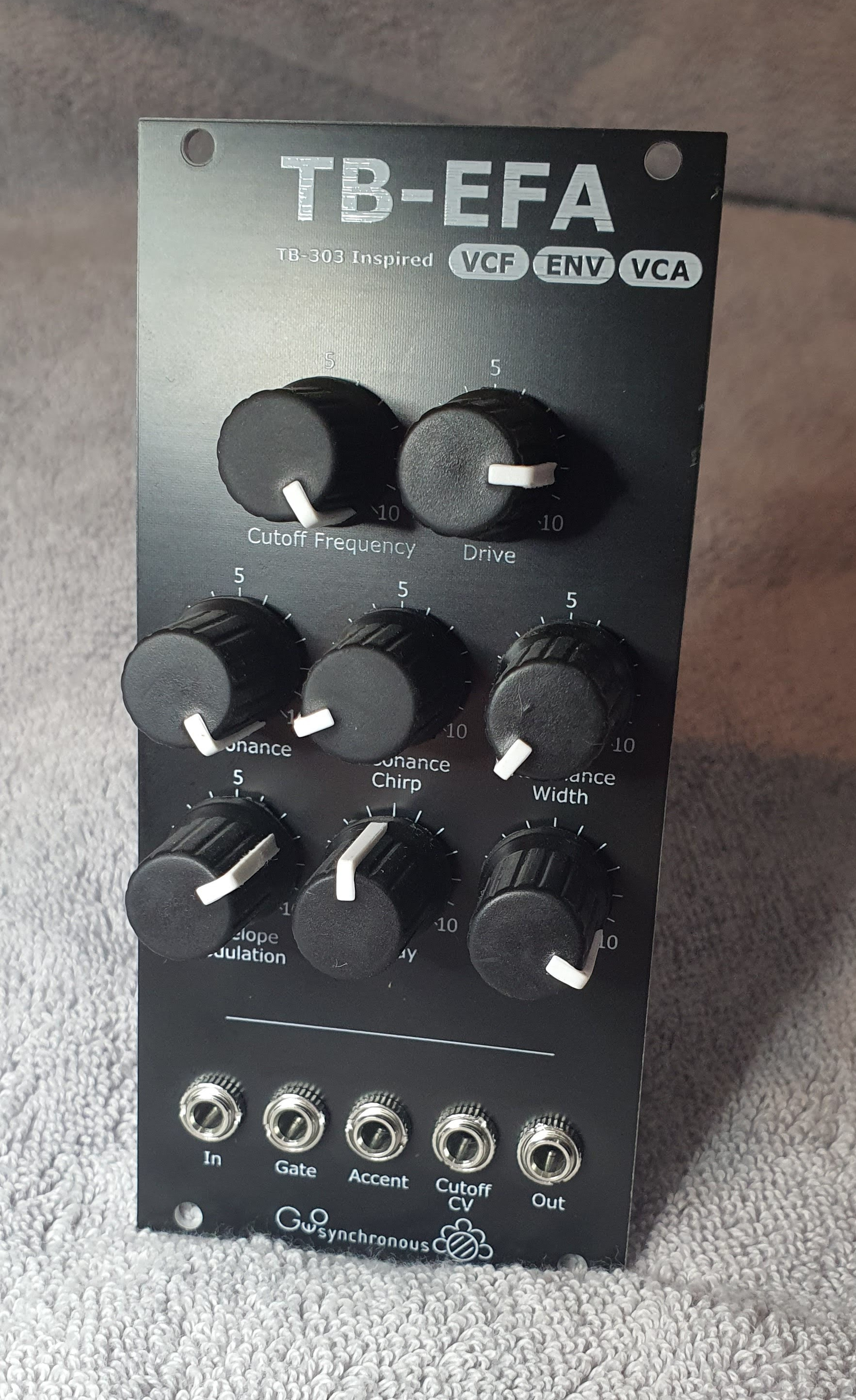

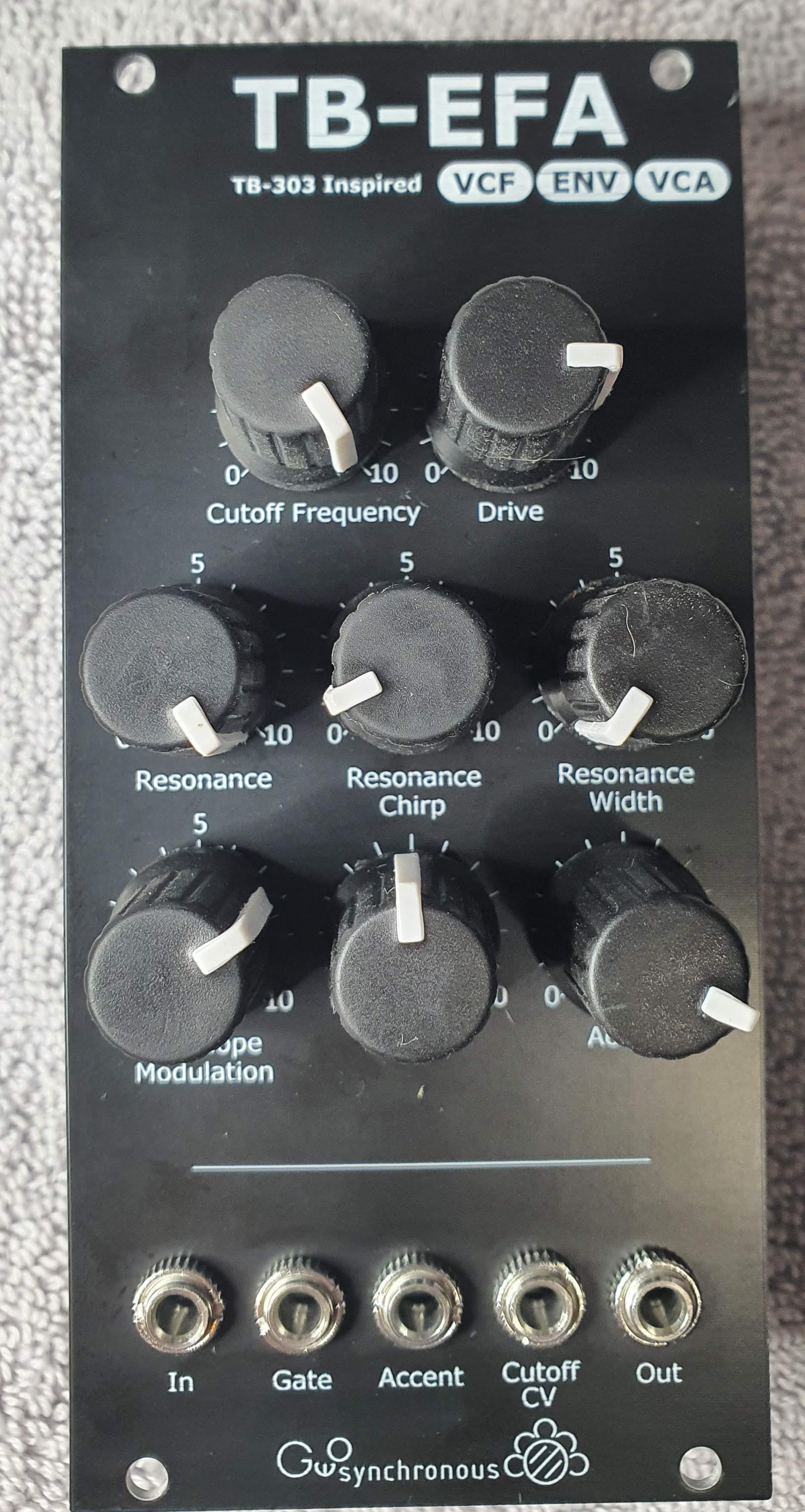

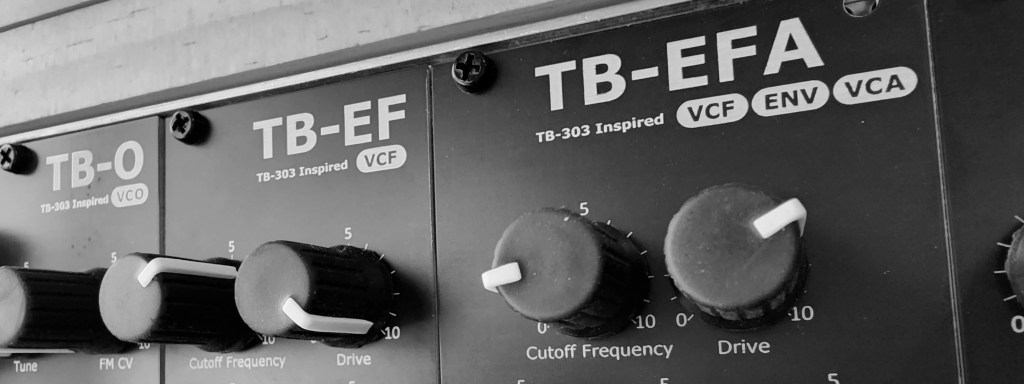

- Manual Cutoff, Drive, Resonance, Chirp, Width, Envelope Mod, Decay & Accent
- CV Inputs: Gate, Accent, Cutoff
- Audio Inputs: Signal In
- Audio Outputs: Filter Out
The TB-EFA shares the same ‘3 and a bit’ pole filter circuit as the Roland TB-303. It also provides a complete version of the envelope used by the 303 with decay control. Rounding off the module is the BA662 based VCA circuit which is also controlled by the same envelope as the filter.
Like the original it has pots to control the Cutoff Frequency, Resonance and Envelope Modulation and Decay. These are true to the original in their operation.
The envelope is controlled by a CV gate input, triggering the envelope and amplifier. If no gate is input you will not hear anything as the VCA will not be opened.
TB-EFA adds an additional “chirp” control that allows you to tweak the upper levels that the resonance feedback can achieve. R97A sets the highest level – by default a 10K resistor in the original 303. In the TB-EFA this is replaced with a 4.7K resistor and combines in series with the 5K “chirp” pot. (Paul over at DINsync.info refers to this as the “dice roll”). You could experiment with an even lower value, if you like shrill bird song for example!
The original TB-303 has an internal trimmer, TM3, that sets the filter frequency maximum. The TB-EFA externalises this with its own pot control (resonance width) so you can adjust to your taste on the fly.
A drive control is also added which provides an inbuilt overdrive effect at extreme, and again builders can try different levels. A 33k resistor at R62 combined with the A100K pot lets you drive it hard but not too much (original uses a fixed 220k). You can reduce the 33k down even as low as just a few K for extreme distortion. This drives the initial input audio signal to the filter – so pre filter overdrive. Note that beyond about 2 o’clock on the pot drives the signal hot and will lose some of the resonance high frequencies as a result. This is normal.
The TB-EFA includes the VCA from the original 303. This uses the Open Music Labs (OML) BA662 “clown” clone circuit to stay true to the original. This VCA is controlled by the same envelope as the filter and only the decay portion can be adjusted.
The final control is accent. Here, a trigger CV input is provided as well as a pot to set the accent level. Note that the accent controls the envelope shape and level, so it needs the envelope to be triggered. Thus, both gate and accent need to be “high” for it to affect the sound – or at least the envelope needs to be running for accent to increase its effect. The accent also adjusts the bias on the BA662 circuit and increases the loudness of the note, so without a trigger you can increase the general accent tone of all notes with just the pot.

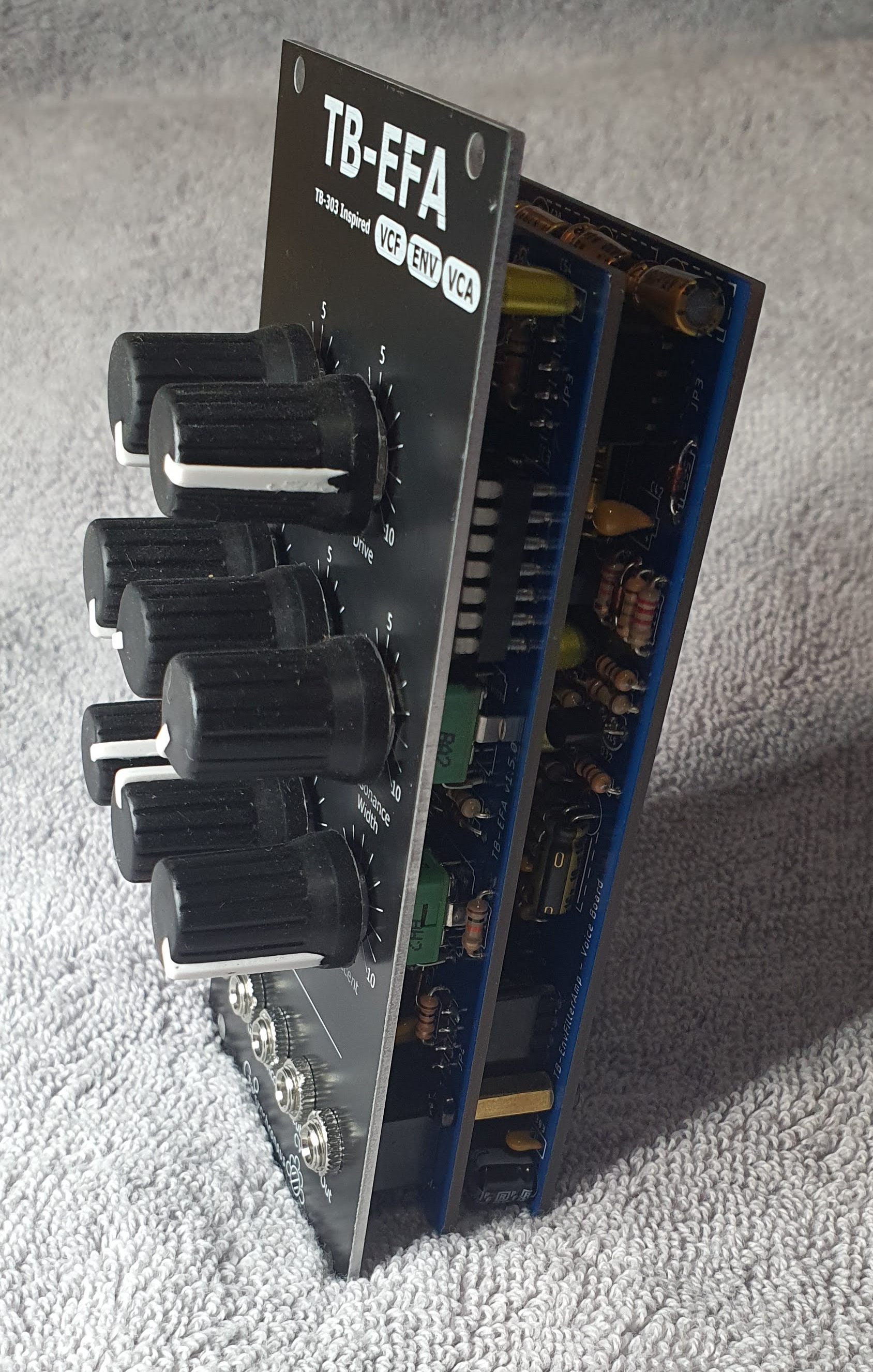

The TB-EFA is available as a panel and pcb set, a panel and pcb set with partial kit and in limited numbers as a pre-built, tested and calibrated module.
October 2022 – Check out Maffez page for some thoughts and modding options.
May 2023 – Decay pot appearing to do nothing? – For those that may experience an issue with the decay pot, seemingly having no effect on the envelope/sound. It has been found that sending a gate signal > 5v can result in the CD4013 IC entering a state where it defaults to “hi” output – i.e. the accent is always on. This in turn removes the decay control from the envelope which reduces the sound tweaking potential. We are looking to see if a simple DIY fix can be applied to existing modules and a revision for the next batch. In the meantime a work around if you experience this is to attenuate your gate signal or to try a different gate generator that sends a ~<5v gate trigger.
PCB & Panel
For those happy to source all parts.
- Voice and Control PCBs
- Black panel
- Contact us for details
PCB & Panel and includes “rare” parts.
- As PCB & Panel
- Includes rare transistors (Green items in BOM)
- 2SC945P (C1583, C2291)
- Available from Thonk soon!
- Available from synthesizer.nz
Built and Calibrated
- Limited supply
- Fully built, tested and calibrated module using quality components and NOS rare parts.
- PRICES ARE IN NZD!
- Shipping June 2022
